M10N GPS

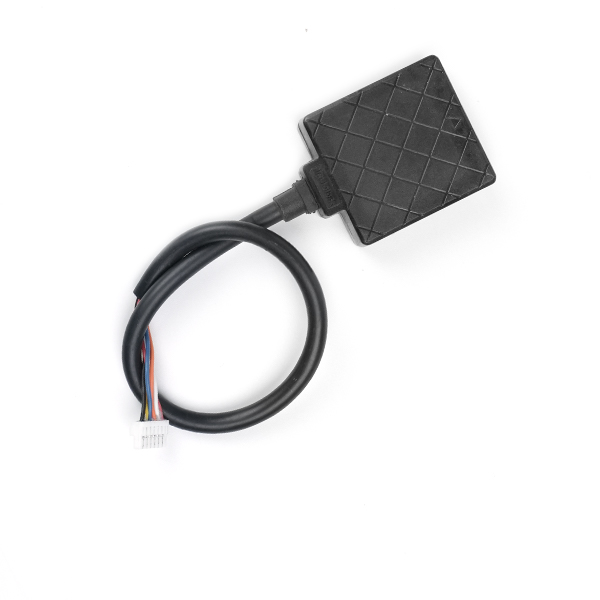

TS100 v2.0


Dual Anti-interference Technology

Worry-free of UAV High-power Image Transmission, High-Voltage Lines, or Other Strong Signal Interference




50 centimeters

Positioning Accuracy

Positioning 20 Satellites

in 6 Seconds at Open Ground


Triple-frequency

Quad satellite system

Super Station-keeping Capability

Even at Valley Bottom


2.5dbI High Gain and Selectivity Ceramic Chip Antennas


Two-stage SAWF (Surface acoustic wave filter) from Murata

Dual Anti-interference Technology


De-interference: Two-stage filtering with 78db attenuation effectively filters out-of-band interference.

Anti-interference: In-band input 1dB compression point -3dBm high linear LNA can minimize the impact

of even a small amount of interference signals that pass the filter.

Effectively resist strong signal interference, such as high-power image transmission on drones, high-voltage lines, etc.

Excellent Performance


The pre-LNA low-loss circuit design that exactly matches the ceramic chip antennas has enhanced the capability to capture extremely weak signals even though interfered with by an ideal filter.

Optimal circuit layout ensures TS100 v2.0 can seize very weak signals and input interference is effectively suppressed at the same time.

50 centimeters positioning accuracy, positioning 20 satellites in 6 seconds at open ground, and station-keeping capability even at the valley bottom.

Triple-frequency: 1561±1MHz, 1575±1MHz, 1602~1610MHz.

BD1, GPS/L1, Galileo/E1, GLONASS/G1, and quad satellite system operation at the same time are available.

Protocol: Default NMEA

               But, when connecting the TS100 v2.0 to the flight controller,  it will recognize the type of flight controller and turn the protocol to the same protocol as the flight controller automatically when connecting the TS100 v2.0 to the flight controller, when the TS100 v2.0 disconnects with the flight controller, the protocol will turn back to the default NMEA.

Baud rate: 38.4K

Voltage: 5±5%VDC

Current: 50-100mA

Top Configuration


GPS decoder chip: Radiolink TS100, with Ublox M10050, is much better than a single GNSS 7N.

Built-in high-precision electronic compass IST8310 (I2C port).

Antenna: 2.5dbI high gain and selectivity ceramic chip antennas.

Double Filter: two-stage SAWF (Surface acoustic wave filter) from Murata.

Worry-free Practice


Pilots can practice with Super Simple Modes when TS100 v2.0 works with Radiolink mini flight controller Mini Pix.

Best choice for racing drone beginner.

Definition of Wires

Definition of Wire that connect to TS100 v2.0


Definition of Wire that connect to Mini Pix


RX

TX

VCC

GND

SCL

SDA

GND

SDA

SCL

RX

TX

VCC

TS100 v2.0 Packing List


  • TS100 v2.0*1

  • Packing Bag*1
